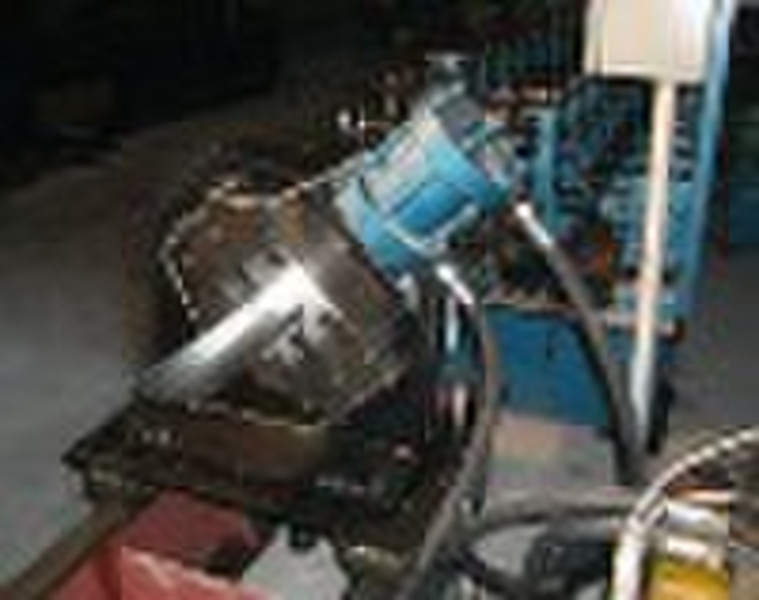

C Purlin Roll Forming Machine
Jeffrey Ye
Contact person
Basic Information
This roll forming machine line consists of decoiler with its base, coil guide rack, forming roller system, hydraulic cutting system and hole punching system, collecting platform and PLC controlling system Technical Parameters 1. Matching material: HDGI (Dx51d+Z/ ASTM653A/ Chinese grade Q195) 2. Material maximum thickness and width: 1.2mm, 230mm 3. Main motor power: 7.5 kw 4. Forming speed: 10-12m/min 5. Hydraulic station power: 3 kw 6. Quantity of stands: about 16 7. Hydraulic pressure: 10-12 mpa 8. Controlling system: PLC 9. Total weight: about 10 Ton 10. Voltage: 380V/ 3phase/ 60 Hz Additional info Material of forming rollers: GCr15 bearing steel with quenched treatment Material of cutter blade: Cr 12 mould steel with quenched treatment Machine Type Strip thicknessStrip widthMain motor powerForming SpeedRSHY120 0.5-1.5mm200-230mm7.5KW10-50m/min.RSHY150 0.5-2.0mm220-250mm11KW-15KW8-15m/min.RSHY160 0.5-2.5mm200-300mm15KW-22KW8-15m/min.RSHY180 0.8-3.5mm250-400mm37KW-45KW8-15m/min.RSHY250 1.0-4.5mm250-500mm55KW-75KW8-10m/min.RSHY300 1.0-6.0mm250-500mm75KW-90KW8-10m/min.
Delivery terms and packaging
Packaging Detail: at the buyer`s option, special requirements for the packing are acceptable Delivery Detail: 60 days after receiving the L/C or T/T deposit
Port: Shanghai
