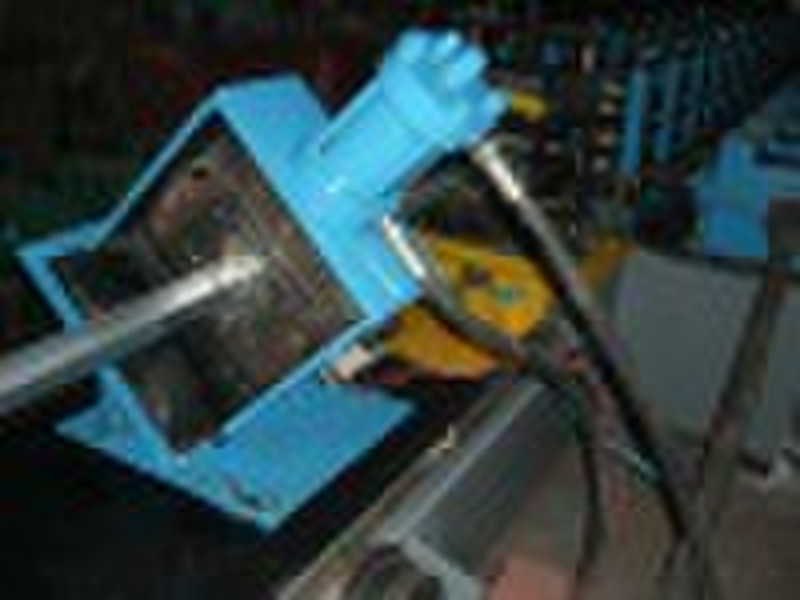

Roll forming machine
Jeffrey Ye
Contact person
Basic Information
Thisrollforming machine consists of decoiler with its base, coil guide rack, forming roller system, glazed tile stamping system, hydraulic cutting system, collecting platform and PLC controlling system Technical Parameters 1. Matching material: PPGI (basic material as Dx51d/ASTM653A/Chinese grade Q195) 2. Material max thickness and width: 0.25-1mm 3. Main motor power: 7.5kw 4. Forming speed: 1-2m/min 5. Hydraulic station power: 5.5 kw 6. Quantity of stands: about 12 7. Hydraulic pressure:8 mpa 8. Controlling system: PLC 9. Total weight: about 10 Tons 10. Voltage: 380V/ 3phase/ 60 Hz Additional info Material of forming rollers: GCr15 bearing steel with quenched treatment Material of cutter blade: Cr 12 mould steel with quenched treatment Machine Type Strip thicknessStrip widthMain motor powerForming SpeedRSHY120 0.5-1.5mm200-230mm7.5KW10-50m/min.RSHY150 0.5-2.0mm220-250mm11KW-15KW8-15m/min.RSHY160 0.5-2.5mm200-300mm15KW-22KW8-15m/min.RSHY180 0.8-3.5mm250-400mm37KW-45KW8-15m/min.RSHY250 1.0-4.5mm250-500mm55KW-75KW8-10m/min.RSHY300 1.0-6.0mm250-500mm75KW-90KW8-10m/min.
Delivery terms and packaging
Port: SHANGHAI
Payment term
Letter of credit
Telegraphic transfer
-
